Tapered Conveyor Rollers

Reliable Solutions from Plastic Conveyor Rollers Manufacturers

Features and options

  • Manufactured to any roller width required
  • Mild steel, powder coated frames
  • Frames available with your own choice of colour
  • Fully stainless steel construction available
  • Options for side guides and end stops to be fitted
  • Made in the UK

Why Choose Tapered Conveyor Rollers?

Our tapered conveyor rollers are built to deliver accuracy, reliability and efficient performance in complex conveyor systems.

Optimised for curved conveyor sections, ensuring smooth product flow around bends without disruption.

Precision-engineered tapered design, maintaining consistent speed and alignment across the conveyor.

Durable construction, suitable for continuous use in demanding industrial environment.

Low maintenance and high reliability, helping reduce downtime and improve overall system efficiency.

These rollers are a key component in maintaining performance across curved conveyor applications.

Designed for Curved Conveying

Tapered conveyor rollers are specifically developed to support product movement around bends and curves within a conveyor system. By gradually reducing in diameter from one end to the other, each tapered conveyor roller ensures items travel at a consistent speed without slipping or misalignment. This makes them essential for maintaining smooth flow in curved sections of conveyor layouts.

Specifications

Type 100 conveyor roller

The FASTRAX Type 100 roller is ideally suited to be fitted in light duty roller conveyors. It has a very free running bearing which means that very small and lightweight products can still be conveyed easily by gravity. Taper rollers are also available to suit 500mm and 800mm inside radius.

Specification

Load rating

16kg per roller (dependent on roller length)

Bearing specification

Semi-precision - options of either mild steel or stainless steel available

Tube material options

Mild steel, self colour / zinc plated, stainless steel, PVC

Spindle material options

Mild steel, self colour / zinc plated, stainless steel

Spindle type options

Spring loaded, female threaded, male threaded, flatted, cross drilled

View Conveyor Roller Diagram View Conveyor Roller Sizes

Type 200 conveyor roller

The FASTRAX Type 200 medium duty gravity roller is a stronger option than the Type 100. It is remarkably robust and is the most popular and economically priced of all our conveyor rollers. The Type 200 conveyor roller is specified and fitted in most newly built gravity roller conveyors.

Specification

Load rating

160kg per roller (dependent on roller length)

Bearing specification

Semi-precision - options of either mild steel or stainless steel available

Tube material options

Mild steel, self colour / zinc plated, stainless steel

Spindle material options

Mild steel, self colour / zinc plated, stainless steel

Spindle type options

Spring loaded, female threaded, male threaded, flatted, cross drilled

View Conveyor Roller Diagram View Conveyor Roller Sizes

Type 300 conveyor roller

The FASTRAX Type 300 roller has a sealed bearing housing which significantly prolongs the life of the roller. This roller is especially suited to use in wash down applications and is ideal for use in food handling and chemical industries. In addition a true taper roller is available to suit 800mm inside radius bends.

Specification

Load rating

240kg per roller (dependent on roller length)

Bearing specification

Precision - options of steel shielded or 2RS bearings available Mild steel or stainless steel bearing options also available

Tube material options

Mild steel, self colour / zinc plated, stainless steel, PVC

Spindle material options

Mild steel, self colour / zinc plated, stainless steel

Spindle type options

Spring loaded, female threaded, male threaded, flatted, cross drilled

View Conveyor Roller Diagram View Conveyor Roller Sizes

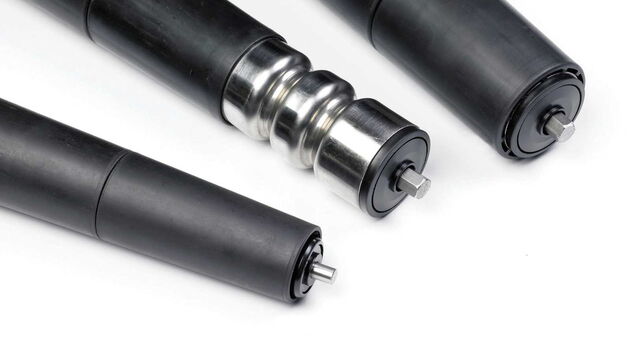

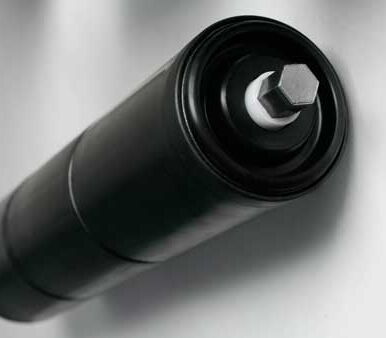

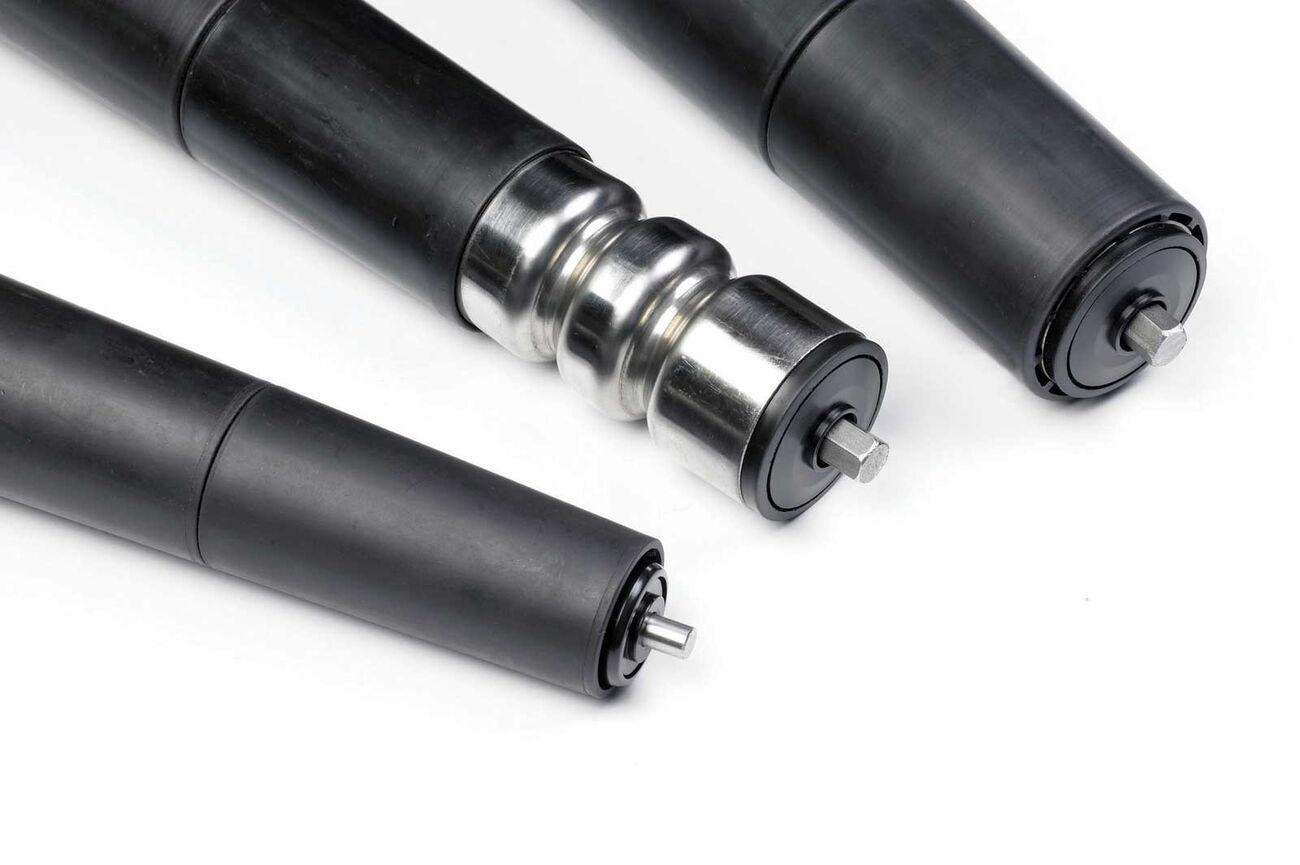

Gallery

Tapered Conveyor Rollers – Frequently Asked Questions

A:

Tapered conveyor rollers are used in curved conveyor systems to guide products smoothly around bends.

A:

They ensure items move at the correct speed across the curve, preventing bunching or misalignment.

A:

They are commonly used in logistics, warehousing, manufacturing and distribution systems.

A:

Yes, they can be manufactured to suit different conveyor widths, radii and load requirements.

Quality design and build

Quality design and build

Our focus on quality starts with sourcing only the best raw materials, rejecting anything that falls outside our strict tolerances.

During manufacture your order is checked at each stage before passing through to the next process. This also contributes to our ability to meet orders on time.

General Information

Tapered conveyor rollers are an essential solution for conveyor systems that include curved sections. Their unique shape allows products to maintain a consistent path and speed when travelling around bends, ensuring efficient handling and reducing the risk of jams or product damage.

Available in a range of sizes and materials, tapered conveyor rollers can be tailored to suit specific system requirements. They are commonly integrated into both powered and gravity conveyor systems, offering flexibility for a wide variety of industrial applications.



Reliable Rollers for Curved Conveyor Systems

Modern tapered conveyor rollers are designed to deliver consistent performance in high-demand environments. Their precision construction ensures smooth operation, even in complex conveyor layouts where accuracy is critical.

Whether used as part of a new installation or to upgrade an existing system, tapered conveyor rollers provide a dependable solution for improving product flow. Their durability and performance make them a valuable addition to any conveyor system requiring efficient curved handling.
