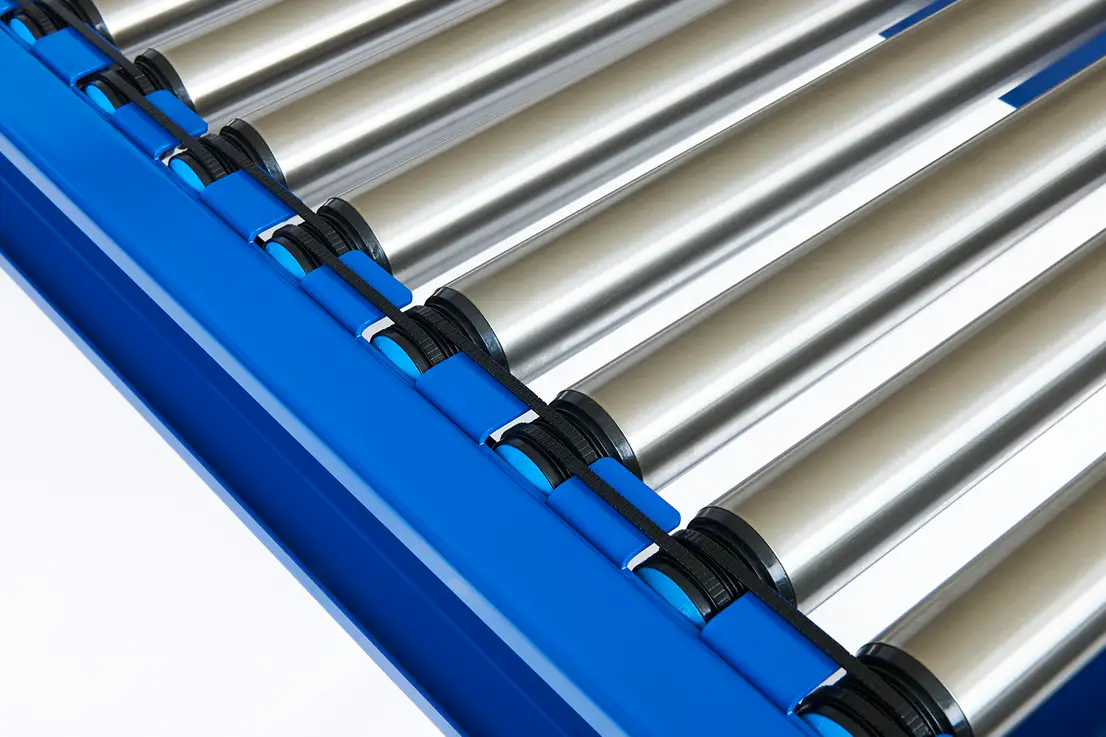

24v DC Powered Roller Conveyors

Advanced 24V DC powered conveyors designed for efficient, quiet and energy-saving automated material handling

Features and options

  • Manufactured to any roller width required
  • Mild steel, powder coated frames
  • Frames available with your own choice of colour
  • Fully stainless steel construction available
  • Options for side guides and end stops to be fitted
  • Made in the UK

Why Choose 24V DC Powered Conveyors?

24V DC powered conveyors are widely used due to their intelligent control, energy efficiency and flexibility.

Energy-efficient dc powered conveyor rollers that only operate when required, reducing overall power consumption and running cost.

Zoned control using motor driven conveyor roller technology, allowing zero-pressure accumulation and preventing product damage.

Modular systems built around motorised conveyor rollers, making it easy to expand, adapt or integrate into existing conveyor layouts.

Quiet, low-maintenance performance, with dc conveyor rollers designed for long-term reliability and minimal wear.

These systems provide a modern, scalable solution for businesses looking to improve automation and efficiency.

Smart, Controlled Material Flow

A 24V DC powered conveyor uses intelligent dc conveyor rollers to move products smoothly and efficiently through a system. These dc powered conveyor rollers are individually driven, allowing precise control of product movement across each zone. A motor driven conveyor roller enables smooth start/stop functionality, while motorised conveyor rollers ensure consistent flow, making this type of system ideal for modern warehouses, production lines and distribution centres.

Specifications

24v DC powered roller conveyors

The FASTRAX 24v DC driven conveyor incorporates a brushless motor built into the roller itself. The conveyor only requires power when goods are being moved which can reduce energy costs by up to 50%. This conveyor can easily be integrated into existing systems.

Specification

Load rating

Up to 100kg per metre

Drive options

24v DC brushless powered roller

Material options

Mild steel powder coated frames [&] mild steel, zinc plated rollers

Speeds available

From 15 metres up to 180 metres per minute

Drive type options

Poly V, round belt pulley, grooved rollers

Stainless Steel 24v DC powered roller conveyors

The FASTRAX stainless steel version is designed to suit food industry and chemical handling requirements or where aesthetics prefer the stainless steel finish.

Specification

Load rating

Up to 100kg per metre

Drive options

24v DC brushless powered roller, IP54 (IP66 is available)

Material options

Stainless steel frames, stainless steel rollers

Speeds available

From 6 metres up to 100 metres per minute
(slower and faster speeds available)

Drive type options

Poly V, round belt pulley, grooved rollers

Ancillary 24v DC powered roller conveyor modules

To complement our range of conveyors we have bend,merge and transfer sections to help create a full system.

Also available

Bend sections

45 degree , 90 degree, 180 degree

Merge sections

30 degree, 45 degree with bolt-on and cut-in options

Transfer sections

90 degree belt transfer

Lift up personnel access gates

Gallery

24v DC Powered Rollers – Frequently Asked Questions

A:

DC conveyor rollers are low-voltage rollers that power sections of a conveyor system, allowing controlled and efficient product movement.

A:

A motor driven conveyor roller contains an internal motor that drives the roller, enabling precise and independent movement within the system.

A:

Motorised conveyor rollers are commonly used in automated systems for transporting cartons, totes and packages in warehouses and manufacturing environments.

A:

Yes, dc powered conveyor rollers only run when needed, helping reduce energy consumption compared to traditional continuously running systems.

Quality design and build

Quality design and build

Our focus on quality starts with sourcing only the best raw materials, rejecting anything that falls outside our strict tolerances.

During manufacture your order is checked at each stage before passing through to the next process. This also contributes to our ability to meet orders on time.

General Information

24V DC powered conveyors represent a significant advancement in material handling technology. By using dc conveyor rollers and motorised conveyor rollers, these systems provide distributed power across the conveyor rather than relying on a single central drive. Each motor driven conveyor roller operates independently or in zones, allowing for precise product control, smoother handling and improved efficiency.

This approach is particularly beneficial in high-demand environments such as e-commerce fulfilment, packaging and manufacturing, where accuracy and flow control are essential. DC powered conveyor rollers also contribute to quieter operation and reduced mechanical complexity, resulting in lower maintenance requirements and improved system longevity.



Intelligent Conveyor Roller Integration

Modern systems built around motorised conveyor rollers are designed for seamless integration into automated workflows. Whether used as standalone units or part of a larger conveyor system, dc powered conveyor rollers provide the flexibility to create highly efficient, scalable solutions.

With features such as sensor-based control, zoned operation and advanced automation capabilities, motor driven conveyor roller systems allow businesses to optimise throughput while reducing manual handling. As automation continues to evolve, dc conveyor rollers remain a key component in building smarter, more responsive conveyor systems.
