Pallet conveyors
Features and options:
- Pallet handling conveyors available both in powered and gravity modules
- Mild steel, powder coated frames
- Frames can be made with your own choice of colour
- Stainless steel construction is available
- Side guides and end stops can be fitted
- Control panel and start/stop switches can be supplied
Heavy Duty Pallet Powered Conveyor
The FASTRAX gravity pallet handling roller conveyor is heavy duty and is ideal for handling many types of pallets.
Specification
Load rating
Up to 1500kg per metre (dependent on roller width)
Roller diameters available
63mm, 76mm, 80mm & 89mm
Roller pitches available
78mm, 104mm, 130mm, 156mm
Frame material options
Mild steel, powder coated, stainless steel
Roller material options
Mild steel zinc plated, stainless steel

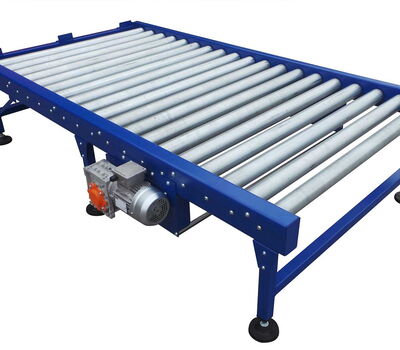

Driven Pallet Handling Roller Conveyor
The FASTRAX driven pallet handling roller conveyor is a robust chain to chain heavy duty roller conveyor and is ideal for handling many types of pallets.
Specification
Load rating
Up to 1500kg per metre
Drive options
Geared motor drive
Speeds available
8 metres per minute up to 75 metres per minute
Roller diameters available
70mm, 76mm, 89mm, 102mm and 127mm
Roller pitches available
78mm, 104mm, 130mm, 156mm
Frame material options
Mild steel, powder coated, stainless steel

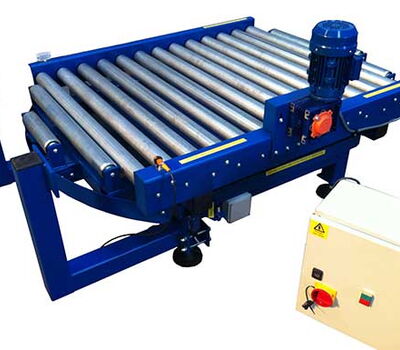

Ancillary Pallet Handling Roller Conveyor
To complement our range of conveyors we have further options available.
Also available
Chain transfer sections
Turntable
